452 PCS Technology Turntable push - Technical blocks
452 PCS Technology Turntable push - Technical blocks
تعذّر تحميل توفر الاستلام
Featuring a large turntable gear, designed for building complex moving structures, rotating platforms, and mechanical engineering models.
What is it used for?
-
Rotating mechanisms: Build turntables, rotating platforms, and structures that pivot around a central axis.
-
Gear-driven systems: Use gears, axles, and connectors to transfer rotational motion.
-
Heavy mechanical structures: Construct crane bases, rotating towers, and machine frames.
-
Robotics projects: Build rotating robot bases and articulated mechanisms when compatible motors or control components are available.
-
STEM education: Explore rotation, gear ratios, structural design, and mechanical movement.

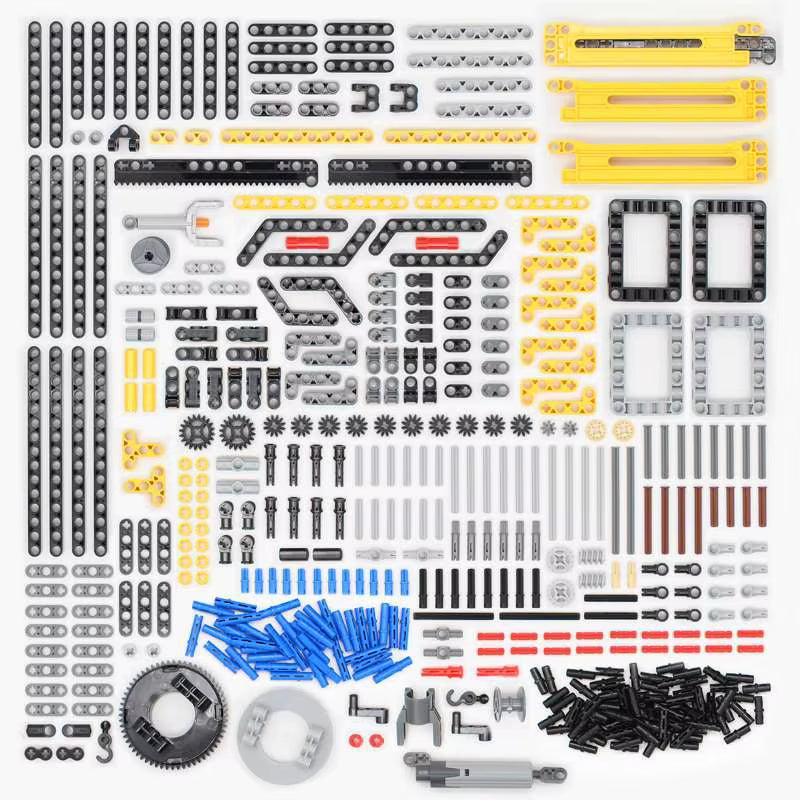

What do the parts do?
|
Parts |
Function |
|---|---|
|
Long black perforated beams |
Form the main structural frame and support rails |
|
Yellow long beams and rails |
Build structural supports and moving assemblies |
|
Gray rectangular frames |
Create rigid sections for towers, platforms, and chassis |
|
Black and gray angled beams |
Form braces, linkages, and articulated structures |
|
Large circular turntable component |
Provides a rotating connection between two structural sections |
|
Small and medium gears |
Transfer motion and change rotational speed or torque |
|
Long black, gray, and brown rods |
Act as axles and shafts for moving components |
|
Blue connector pins |
Join beams and secure structural connections |
|
Black pins and bushings |
Connect parts and retain axles or joints |
|
Gray connectors and short links |
Join beams at different angles and create pivot points |
|
Yellow small connectors |
Secure joints and provide structural connection points |
|
Red connector pins |
Attach compatible components and reinforce selected joints |
|
Springs and small cylindrical pieces |
Support specialized moving mechanisms, depending on compatibility |
Is it suitable for children? Yes, it can be useful for hands-on STEM and mechanical engineering activities. Because it contains many small parts, it is unsuitable for children under 3; follow the manufacturer's

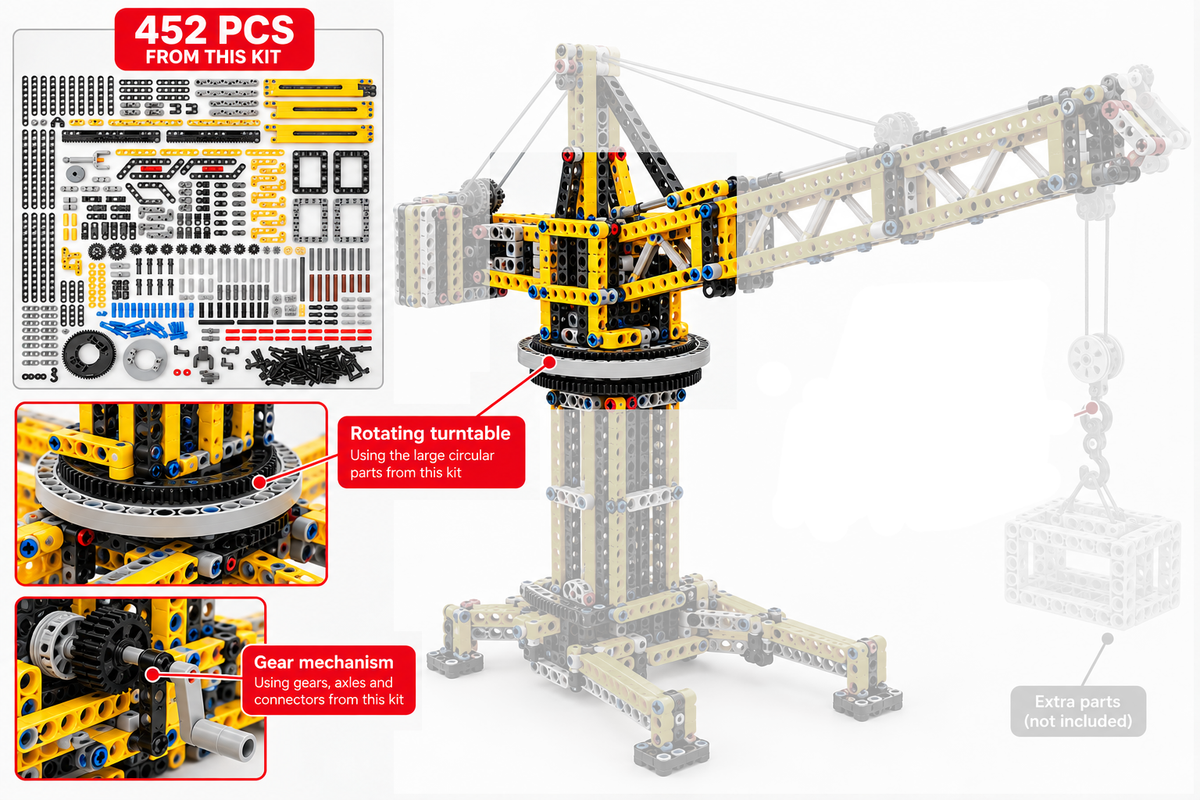

Real-life application: A rotating tower crane

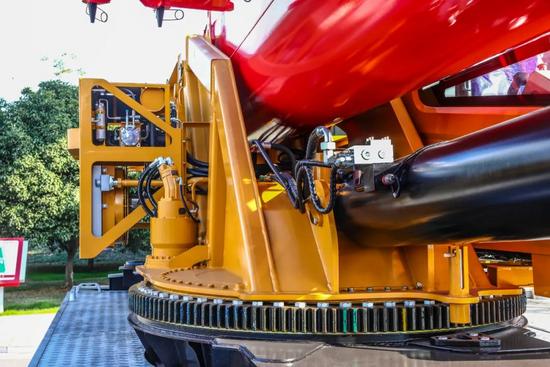

Imagine a crane lifting building materials. Its upper section must rotate to move the load from one side of the construction site to another.
Your kit's large turntable component can demonstrate the same basic principle.
1. Rotating base
The large circular turntable represents the connection between the stationary base and the rotating upper structure.
2. Structural frame
The perforated beams and connectors can form a miniature tower, support frame, or crane body.
3. Rotating arm
Additional compatible beams can form a crane arm that turns with the platform, demonstrating how equipment changes direction.
Where else could this principle be used?
-
Excavators: The upper cab and arm rotate relative to the tracks.
-
Wind-turbine models: A rotating joint can demonstrate how a structure turns.
-

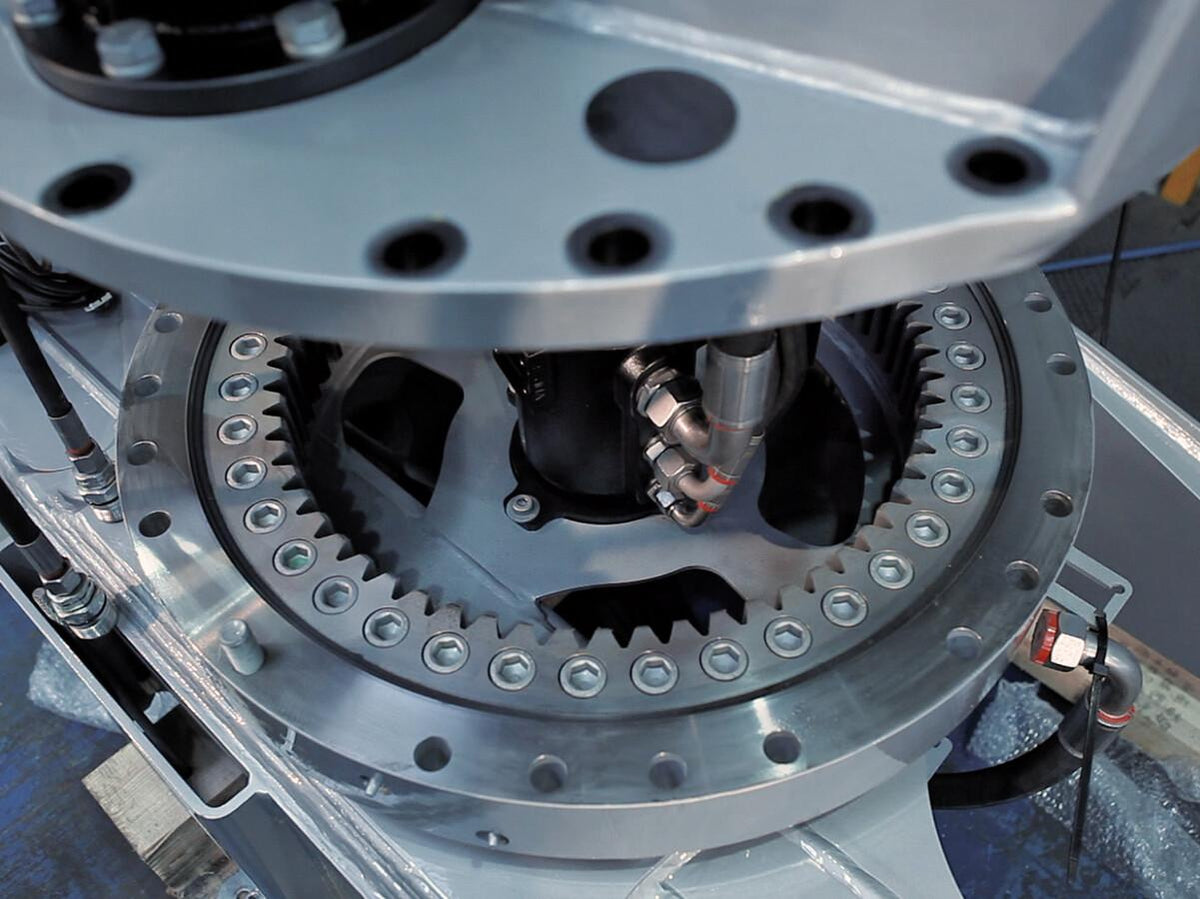

Industrial robots: A turntable can rotate a robot arm or workpiece.
-
Rotating display stands: A platform turns products toward different viewing angles.
What could a child build with this kit?
A small, hand-operated rotating crane model is a promising educational project. The child could turn the upper structure manually and observe how the turntable transfers rotation.
